Prepare the Hardware (PIF-02)

This section explains the included items and the installation preparation steps. Please make sure you have all of the following items.

Warning

⑤ The clamp will be included with products manufactured from August 2025 onwards.

※ For instructions on how to use the clamp ⑤, please refer to How to Use the Clamp.

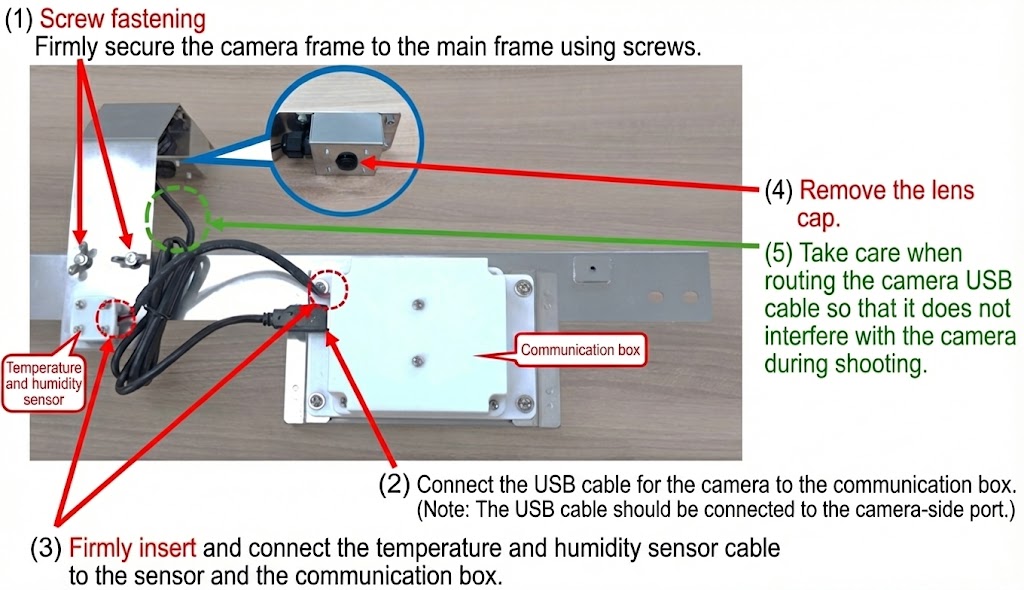

Once you have all the included items, please prepare for installation by following the steps shown in the figure below.

Hint

Remove the camera cap before use.

Once the insect trap camera is prepared, attach it to the ESCO641 insect trap following the instructions below.

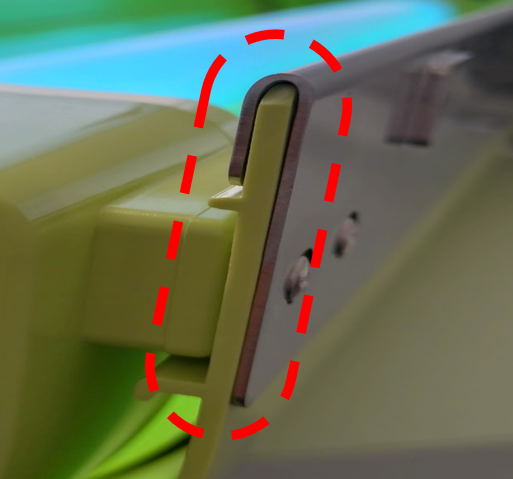

① Fit the U-shaped structure of the main frame of the insect trap camera onto the upper frame of the ESCO641 insect trap.

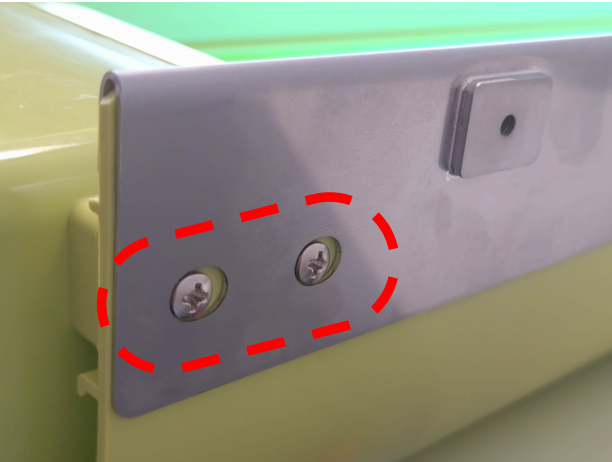

② Attach the insect trap camera so that the two holes on both sides of the main frame fit onto the screws on both sides of the ESCO641 insect trap.

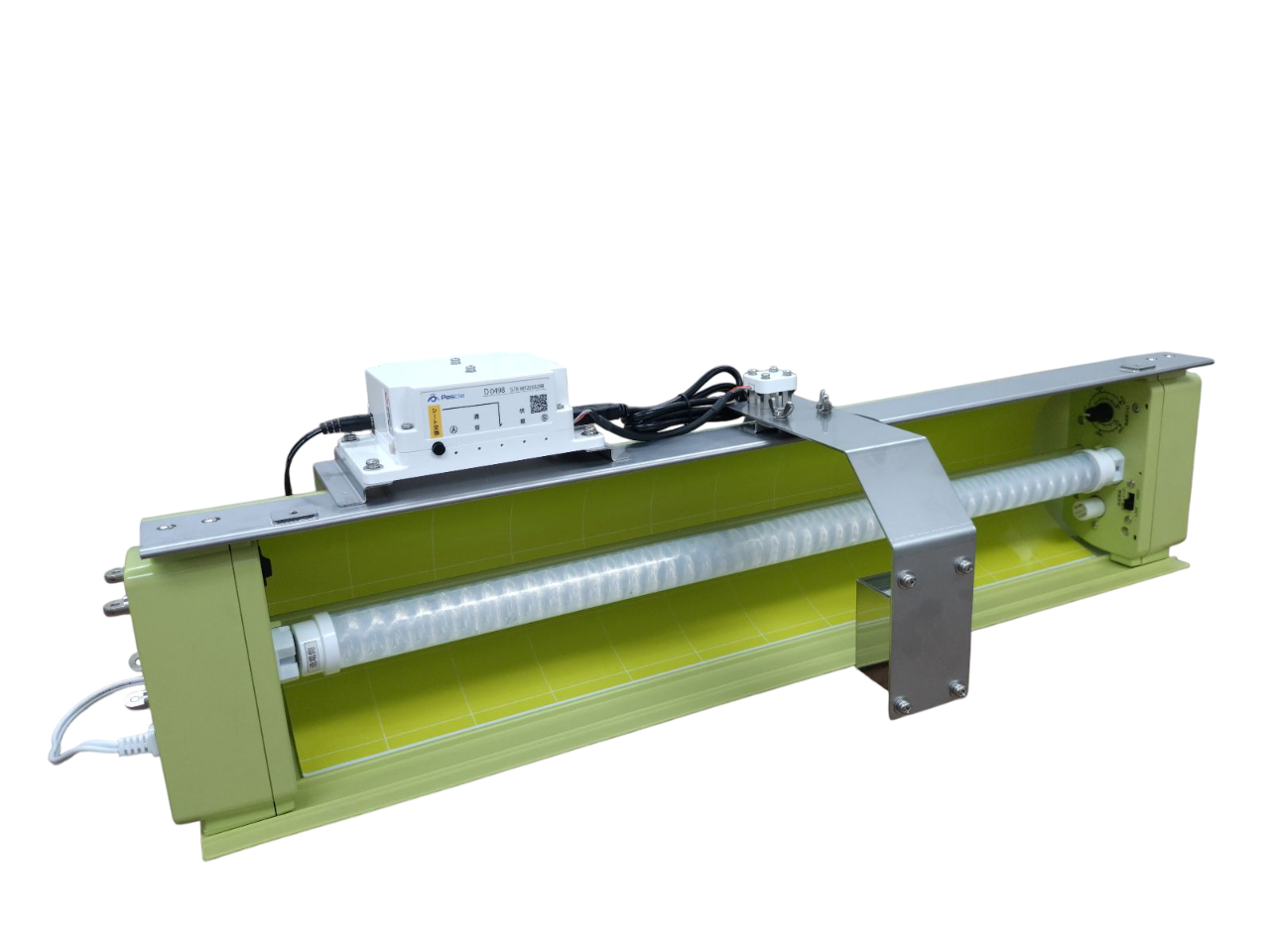

③ The insect trap camera is now attached to the ESCO641 insect trap.
